DMN2004DWKQ - Dual N-Channel MOSFET

DMN2004DWKQ Description

NEW PRODUCT Product Summary V(BR)DSS 20V RDS(ON) max 0.55Ω @ VGS = 4.5V ID TA = +25°C 540mA .
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high-effici.

DMN2004DWKQ Features

* Dual N-Channel MOSFET
* Low On-Resistance
* Low Gate Threshold Voltage
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* Ultra-Small Surface Mount Package
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony F

DMN2004DWKQ Applications

* Applications

📥 Download Datasheet

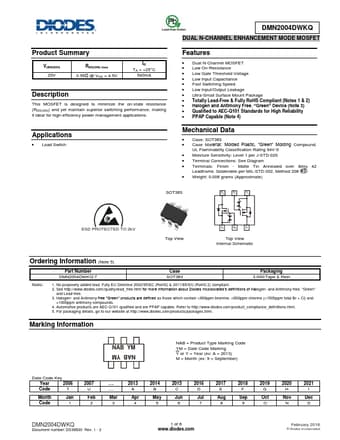

Preview of DMN2004DWKQ PDF
datasheet Preview Page 2 datasheet Preview Page 3
