DMN2004WKQ - N-Channel MOSFET

DMN2004WKQ Description

DMN2004WKQ N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 20V RDS(ON) max 550 mΩ @ VGS = 4.5V ID TC = +25°C 0.54 mA .
and Applications This MOSFET is designed to meet the stringent requirements of Automotive applications.

DMN2004WKQ Features

* Low On-Resistance: RDS(ON)
* Low Gate Threshold Voltage
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* ESD Protected
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qual

DMN2004WKQ Applications

* This MOSFET is designed to meet the stringent requirements of Automotive applications. It is qualified to AEC-Q101, supported by a PPAP and is ideal for use in:
* Engine Management Systems
* DC-DC Converters

📥 Download Datasheet

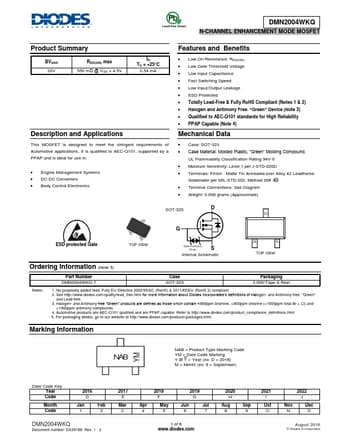

Preview of DMN2004WKQ PDF
datasheet Preview Page 2 datasheet Preview Page 3
