* Low RDS(ON)
* ensures on state losses are minimized
* Small form factor thermally efficient package enables higher density end products
* Occupies just 33% of the board area occupied by SO-8 enabling smaller end product
* 100% UIS (Avalanche) rated
DMN3010LFG Datasheet (216.31 KB)
DMN3010LFG
216.31 KB
N-channel mosfet.
NEW PRODUCT

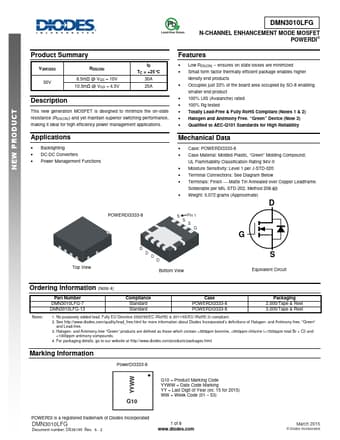

DMN3010LFG
N-CHANNEL ENHANCEMENT MODE MOSFET POWERDI®
Product Summary
V(BR)DSS 30V
RDS(ON)
8.5mΩ @ VGS = 10V 10.5mΩ @ VGS = 4.5V
ID T.
