DMN3020UFDF

30V N-Channel MOSFET

DMN3020UFDF Features

* 0.6mm Profile

* Ideal for Low Profile Applications

* PCB Footprint of 4mm2

* Low Gate Threshold Voltage

* Fast Switching Speed

* ESD Protected Gate

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

DMN3020UFDF General Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
* Battery Management Application
* Power Management Functions
* DC-DC Converters DMN3020UFDF 30V N-CH.

DMN3020UFDF Datasheet (444.69 KB)

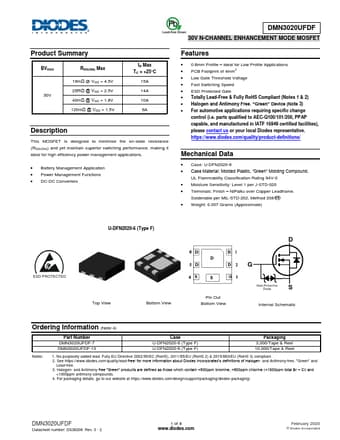

Preview of DMN3020UFDF PDF

Datasheet Details

Part number:

DMN3020UFDF

Manufacturer:

DIODES ↗

File Size:

444.69 KB

Description:

30v n-channel mosfet.
Product Summary BVDSS 30V RDS(ON) Max 19mΩ @ VGS = 4.5V 25mΩ @ VGS = 2.5V 40mΩ @ VGS = 1.8V 120mΩ @ VGS = 1.5V ID Max TC = +25°C 15A 14A 10A 6A De.
