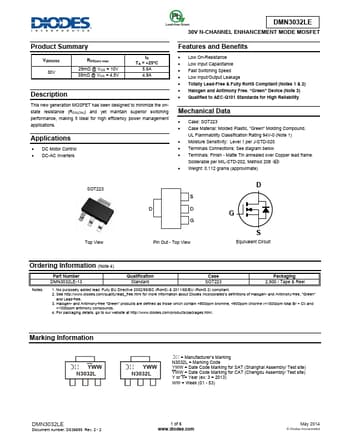

DMN3032LE Datasheet | Diodes Incorporated

Description This new generation MOSFET has been designed to minimize the onstate resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications - DC Motor Control - DC-AC Inverters Features and Benefits - Low On-Resistance - Low Input Capacitance - Fast Switching Speed - Low Input/Output Leakage - Totally Lead-Free & Fully Ro HS pliant (Notes 1 & 2) - Halogen and Antimony Free. “Green” Device (Note 3) - Qualified to AEC-Q101 Standards for High Reliability Mechanical Data - Case: SOT223 - Case Material: Molded Plastic, “Green” Molding pound. UL Flammability Classification Rating 94V-0 (Note 1) - Moisture Sensitivity: Level 1 per J-STD-020 - Terminals Connections: See diagram below - Terminals: Finish - Matte Tin annealed over Copper lead frame. Solderable per MIL-STD-202, Method 208 - Weight: 0.112 grams (approximate) SOT223 Top View Pin Out - Top View Equivalent Circuit Ordering Information (Note 4) Notes: Part Number DMN3032LE-13 Qualification Standard Case SOT223 Packaging 2,500 / Tape & Reel 1. No purposely added lead. Fully EU Directive 2002/95/EC (Ro HS) & 2011/65/EU (Ro HS 2) pliant. 2. See http://.diodes./quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony...
