DMP2006UFG, P-Channel MOSFET

DMP2006UFG 20V P-CHANNEL ENHANCEMENT MODE MOSFET PowerDI3333-8 Product Summary BVDSS -20V RDS(ON) max 5.5mΩ @ VGS = -4.5V 7.5mΩ @ VGS = -2.5V ID m.
This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high effici.

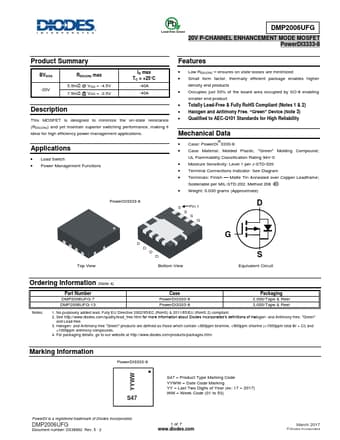

datasheet Preview Page 1 from Datasheet4u.com

DMP2006UFG-Diodes.pdf

DMP2006UFG Datasheet Preview — Preview of DMP2006UFG PDF

Datasheet Details

Part number:

DMP2006UFG

Manufacturer:

DIODES ↗

File Size:

391.05 KB

Description:

P-Channel MOSFET

Features

* Low RDS(ON)
* ensures on state losses are minimized
* Small form factor, thermally efficient package enables higher density end products
* Occupies just 33% of the board area occupied by SO-8 enabling smaller end product
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 &

Applications

* Applications
* Load Switch
