DMP2022LSS-13 - P-Channel 20V MOSFET

VBsemi

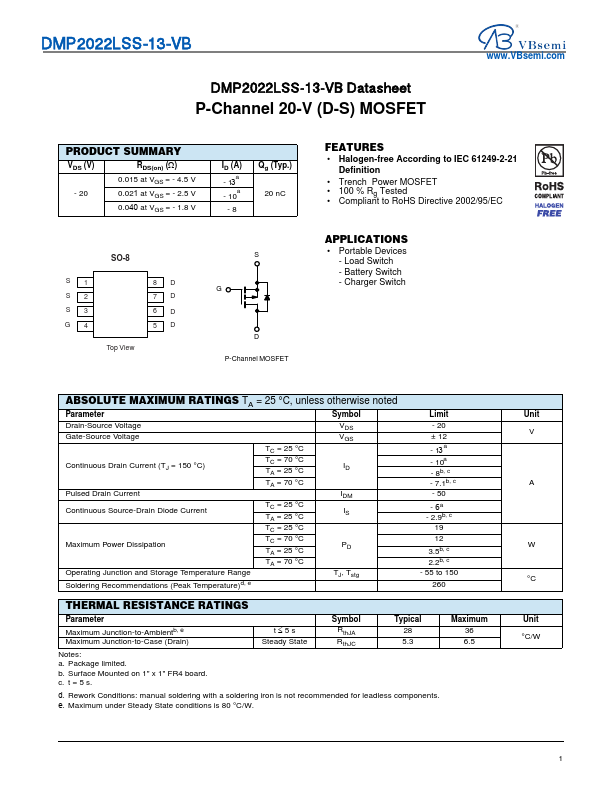

DMP2022LSS-13 Description

DMP2022LSS-13-VB DMP2022LSS-13-VB Datasheet P-Channel 20-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) 0.015 at VGS = - 4.5 V.

DMP2022LSS-13 Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET
* 100 % Rg Tested

DMP2022LSS-13 Applications

* Portable Devices - Load Switch - Battery Switch - Charger Switch ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 150 °C) Pulsed Drain Current Continuous Source-Drain Diode Current Maxim

📥 Download Datasheet

DMP2022LSS-13 Datasheet Preview — Preview of DMP2022LSS-13 PDF

Datasheet Details

Part number: DMP2022LSS-13
Manufacturer: VBsemi
File Size: 252.17 KB
Datasheet: DMP2022LSS-13-VBsemi.pdf
Description: P-Channel 20V MOSFET
