* TrenchFET® Power MOSFET
* 100 % Rg Tested APPLICATIONS
* For Mobile Computing - Load Switch - Notebook Adaptor Switch - DC/DC Converter G1 S2 3D Top View G D P-Channel MOSFET www.VBsemi.com ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted) Parameter Symb
DMP2305UQ-7 Datasheet (238.50 KB)
DMP2305UQ-7
VBsemi
238.50 KB
P-channel mosfet.
DMP2305UQ-7-VB

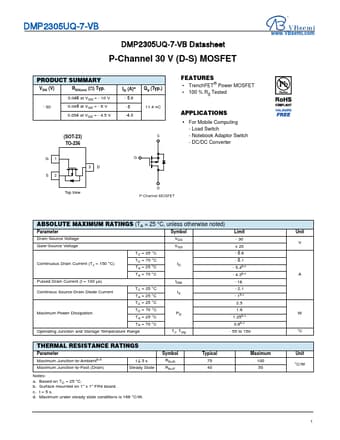

DMP2305UQ-7-VB Datasheet
P-Channel 30 V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) () Typ.
0.046 at VGS = - 10 V
- 30
0.049 at.
📁 Related Datasheet
DMP2305UQ - P-CHANNEL ENHANCEMENT MODE MOSFET
(DIODES)
NEW PRODUCT
YM
NOT RECOMMENDED FOR NEW DESIGN USE DMP2065UQ
DMP2305UQ
P-CHANNEL ENHANCEMENT MODE MOSFET
Features
Low On-Resistance 60mΩ @ VGS .
DMP2305U - P-Channel MOSFET
(Diodes)
NEW PRODUCT
YM
DMP2305U
P-CHANNEL ENHANCEMENT MODE MOSFET
Features
Low On-Resistance
60mΩ @ VGS = -4.5V
90mΩ @ VGS = -2.5V
113mΩ @ VG.
DMP2305UVT - P-Channel MOSFET
(Diodes)
A Product Line of Diodes Incorporated
DMP2305UVT
20V P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary
V(BR)DSS -20V
Max RDS(on) (Note 6)
60mΩ @ VG.
