* LD-MOS Technology with the Lowest Figure of Merit: RDS(on) = 55mΩ to Minimize On-State Losses Qg = 2.9nC for Ultra-Fast Switching
* Vgs(th) = -0.6V typ. for a Low Turn-On Potential
* CSP with Footprint 1.5mm × 1.0mm
* Height = 0.62mm for Low Profile
* Totally Lead-Free & Fully

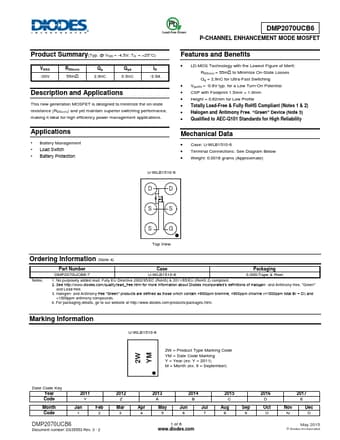

DMP2070UCB6 Datasheet (384.42 KB)
DMP2070UCB6
384.42 KB
P-channel mosfet.
NEW PRODUCT
DMP2070UCB6
P-CHANNEL ENHANCEMENT MODE MOSFET
Product Summary(Typ. @ VGS = -4.5V, TA = +25°C)
VDSS -20V
RDS(on) 55mΩ
Qg 2.9nC
Qgd 0..
