DMP3036SFG - P-Channel MOSFET

Datasheet Summary

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Backlighting Power Management Functions DC-DC Converters Mechanical Data

Features

  • Low RDS(ON).
  • ensures on state losses are minimized.
  • Small form factor thermally efficient package enables higher density end products.
  • Occupies just 33% of the board area occupied by SO-8 enabling smaller end product.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.

📥 Download Datasheet

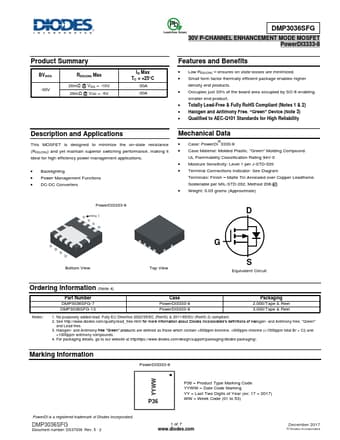

Datasheet preview – DMP3036SFG

Datasheet Details

Part number DMP3036SFG
Manufacturer DIODES
File Size 461.56 KB
Description P-Channel MOSFET
Datasheet download datasheet DMP3036SFG Datasheet
Additional preview pages of the DMP3036SFG datasheet.

📁 Similar Datasheet

  • DMP3030SN - P-Channel MOSFET (Diodes Incorporated)
  • DMP3035LSS - P-Channel MOSFET (Diodes Incorporated)
  • DMP3008SFG - 30V P-Channel MOSFET (Diodes Incorporated)
  • DMP3010LK3 - P-Channel MOSFET (INCHANGE)
  • DMP3010LPS - P-Channel MOSFET (Diodes Incorporated)
  • DMP3015LSS - single P-Channel MOSFET (Diodes Incorporated)
  • DMP3020LSS - single P-Channel MOSFET (Diodes Incorporated)
  • DMP3028LK3 - P-Channel MOSFET (INCHANGE)
  • DMP3056LDM - P-Channel MOSFET (Diodes Incorporated)
  • DMP3056LSD - Dual P-Channel MOSFET (Diodes Incorporated)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
ADVANCE INFORMATION DMP3036SFG 30V P-CHANNEL ENHANCEMENT MODE MOSFET PowerDI3333-8 Product Summary BVDSS -30V RDS(ON) Max 20mΩ @ VGS = -10V 29mΩ @ VGS = -5V ID Max TC = +25°C -30A -30A Features and Benefits  Low RDS(ON) – ensures on state losses are minimized.  Small form factor thermally efficient package enables higher density end products.  Occupies just 33% of the board area occupied by SO-8 enabling smaller end product.  Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free.
