LM2904Q, LM2902Q AUTOMOTIVE COMPLIANT DUAL AND QUAD OPERATIONAL AMPLIFIERS

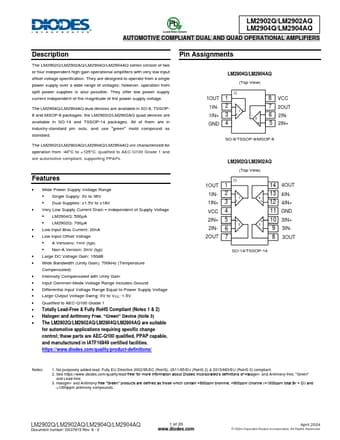

📥 Download Datasheet  Datasheet Preview Page 1

Description

LM2902Q/LM2902AQ LM2904Q/LM2904AQ AUTOMOTIVE COMPLIANT DUAL AND QUAD OPERATIONAL AMPLIFIERS .
The LM2902Q/LM2902AQ/LM2904Q/LM2904AQ series consist of two or four independent high-gain operational amplifiers with very low input offset voltage sp.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LM2904Q, LM2902Q. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LM2904Q, LM2902Q
Manufacturer
DIODES ↗
File Size
1.09 MB
Datasheet
LM2902Q-Diodes.pdf
Description
AUTOMOTIVE COMPLIANT DUAL AND QUAD OPERATIONAL AMPLIFIERS
Note
This datasheet PDF includes multiple part numbers: LM2904Q, LM2902Q.
Please refer to the document for exact specifications by model.

Features

* Wide Power Supply Voltage Range ▪ Single Supply: 3V to 36V ▪ Dual Supplies: ±1.5V to ±18V
* Very Low Supply Current Drain
* Independent of Supply Voltage ▪ LM2904Q: 500µA ▪ LM2902Q: 700µA
* Low Input Bias Current: 20nA
* Low Input Offset Voltage ▪ A Versions

Applications

* requiring specific change control; these parts are AEC-Q100 qualified, PPAP capable, and manufactured in IATF16949 certified facilities. https://www. diodes. com/quality/product-definitions/ Pin Assignments LM2904Q/LM2904AQ (Top View) 1OUT 1 1IN- 2 - 1 1IN+ 3 GND 4 + 8 VCC 7 2OUT - 6 2IN- 2 + 5 2
