MMBZ5V6AL 24W AND 40W PEAK POWER DUAL SURFACE MOUNT TVS

📥 Download Datasheet Datasheet Preview Page 1

Description

PARTS OBSOLETE * PLEASE USE ALTERNATIVE PARTS: MMBZ5V6ALA - MMBZ33VALA MMBZ5V6AL - MMBZ33VAL 24W AND 40W PEAK POWER DUAL SURFACE MOUNT TVS Fe.

📥 Download Datasheet

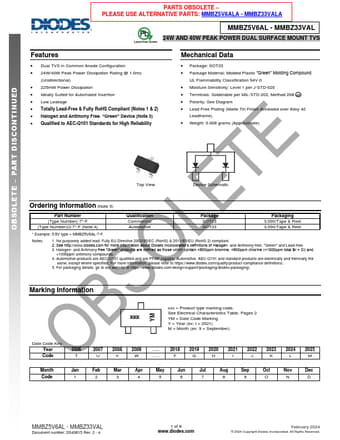

Preview of MMBZ5V6AL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
MMBZ5V6AL
Manufacturer
DIODES ↗
File Size
690.01 KB
Datasheet
MMBZ5V6AL-Diodes.pdf
Description
24W AND 40W PEAK POWER DUAL SURFACE MOUNT TVS

Features

* Dual TVS in Common Anode Configuration
* 24W/40W Peak Power Dissipation Rating @ 1.0ms (Unidirectional)
* 225mW Power Dissipation
* Ideally Suited for Automated Insertion
* Low Leakage
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free.
