SBR10U45SD1 - SUPER BARRIER RECTIFIER

Datasheet Summary

Features

  • Designed as Bypass Diodes for Solar Panels Selectively Rated for 200ºC Maximum Junction Temperature for High Thermal Reliability Patented Super Barrier Rectifier Technology High Forward Surge Capability Ultra Low Forward Voltage Drop Excellent High Temperature Stability Lead Free Finish, RoHS Compliant (Note 2) Mechanical Data.
  • Case: DO-201AD Case Material: Molded Plastic, UL Flammability Classification Rat.

📥 Download Datasheet

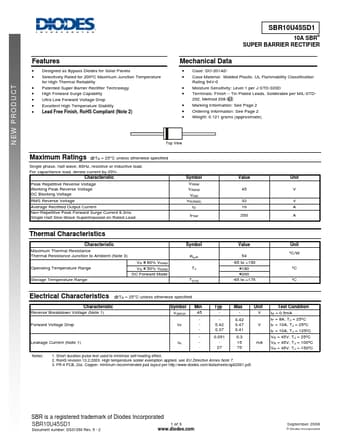

Datasheet preview – SBR10U45SD1

Datasheet Details

Part number SBR10U45SD1
Manufacturer DIODES
File Size 169.46 KB
Description SUPER BARRIER RECTIFIER
Datasheet download datasheet SBR10U45SD1 Datasheet
Additional preview pages of the SBR10U45SD1 datasheet.

📁 Similar Datasheet

  • SBR10U45SP5 - 10A SBR SUPER BARRIER RECTIFIER (Luguang Electronic Technology)
  • SBR10U45SP5 - Low VF Schottky Rectifier SMD (HAOHAI)
  • SBR10U45CT - Ultra Low VF Schottky Rectifier (Global Semiconductor)
  • SBR10U45FCT - Ultra Low VF Schottky Rectifier (Global Semiconductor)
  • SBR10U40CTB - Super Barrier Rectifiers (Dionics)
  • SBR10U40CTF - Super Barrier Rectifiers (Dionics)
  • SBR10U40CTI - Super Barrier Rectifiers (Dionics)
  • SBR10U150CTB - Super Barrier Rectifiers (Dionics)
  • SBR10U150CTF - Super Barrier Rectifiers (Dionics)
  • SBR10U150CTI - Super Barrier Rectifiers (Dionics)
Other Datasheets by Diodes

Full PDF Text Transcription

Click to expand full text
SBR10U45SD1 10A SBR® SUPER BARRIER RECTIFIER Features • • Designed as Bypass Diodes for Solar Panels Selectively Rated for 200ºC Maximum Junction Temperature for High Thermal Reliability Patented Super Barrier Rectifier Technology High Forward Surge Capability Ultra Low Forward Voltage Drop Excellent High Temperature Stability Lead Free Finish, RoHS Compliant (Note 2) Mechanical Data • • • • • • • Case: DO-201AD Case Material: Molded Plastic, UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020D Terminals: Finish – Tin Plated Leads. Solderable per MIL-STD202, Method 208 Marking Information: See Page 2 Ordering Information: See Page 2 Weight: 0.
