SBR10U40CTF, SBR10U40CTB, Super Barrier Rectifiers

SBR10U40CT SBR10U40CTF SBR10U40CTI SBR10U40CTB Using state-of-the-art SBR IC process technology, the following .

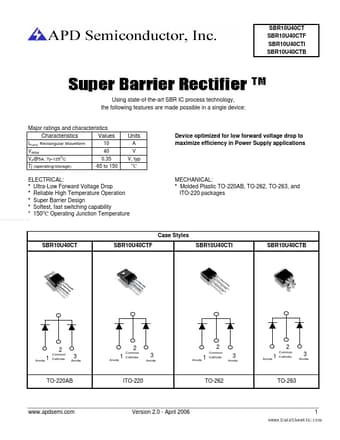

datasheet Preview Page 1 from Datasheet4u.com

SBR10U40CTB_Dionics.pdf

SBR10U40CTF Datasheet Preview — This datasheet PDF includes multiple part numbers: SBR10U40CTF, SBR10U40CTB. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SBR10U40CTF, SBR10U40CTB

Manufacturer:

Dionics

File Size:

105.26 KB

Description:

Super Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SBR10U40CTF, SBR10U40CTB.
Please refer to the document for exact specifications by model.

Features

* are made possible in a single device: Major ratings and characteristics Values Characteristics IF(AV) Rectangular Waveform VRRM VF@5A, Tj=125 C Tj (operating/storage) O Units A V V, typ O C 10 40 0.35 -65 to 150 Device optimized for low forward voltage drop to maximize efficiency in Power Supply

Applications

* ELECTRICAL:
* Ultra-Low Forward Voltage Drop
* Reliable High Temperature Operation
* Super Barrier Design
* Softest, fast switching capability
* 150OC Operating Junction Temperature www. DataSheet4U. com MECHANICAL:
* Molded Plastic TO-220AB, TO-262, TO-263, and ITO-220 packa
