SBR10U45FCT - Ultra Low VF Schottky Rectifier

This page provides the datasheet information for the SBR10U45FCT, a member of the SBR10U45CT Ultra Low VF Schottky Rectifier family.

Datasheet Summary

Features

  • This low cost Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150°C junction temperature. Typical.

📥 Download Datasheet

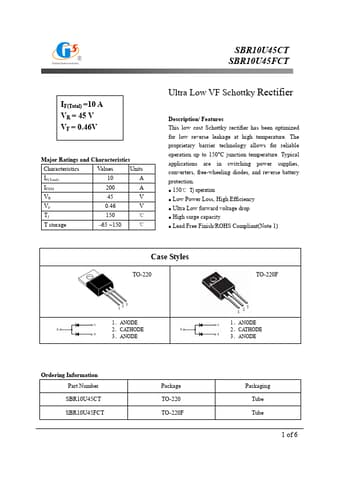

Datasheet preview – SBR10U45FCT

Datasheet Details

Part number SBR10U45FCT
Manufacturer Global Semiconductor
File Size 941.28 KB
Description Ultra Low VF Schottky Rectifier
Datasheet download datasheet SBR10U45FCT Datasheet
Additional preview pages of the SBR10U45FCT datasheet.

📁 Similar Datasheet

Other Datasheets by Global Semiconductor

Full PDF Text Transcription

Click to expand full text
SBR10U45CT SBR10U45FCT IF(Total) =10 A VR = 45 V VF = 0.46V Major Ratings and Characteristics Characteristics Values Units IF(Total) IFSM VR 10 A 200 A 45 V VF TJ T storage 0.46 150 -65 ~150 V ℃ ℃ Ultra Low VF Schottky Rectifier Description/ Features This low cost Schottky rectifier has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 150°C junction temperature. Typical applications are in switching power supplies, converters, free-wheeling diodes, and reverse battery protection.
