SD103BW - SCHOTTKY BARRIER DIODE

Product Overview

Diodes

Datasheet Details

Part number	SD103BW
Manufacturer	DIODES
File Size	345.83 KB
Description	SCHOTTKY BARRIER DIODE
Datasheet	SD103BW Datasheet
Note	This datasheet PDF includes multiple part numbers: SD103BW, SD103AW. Please refer to the document for exact specifications by model.

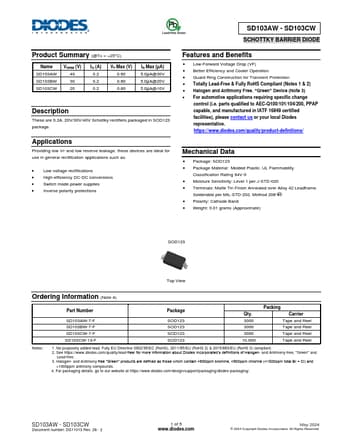

Additional preview pages of the SD103BW datasheet.

Product details

Description

These are 0.2A, 20V/30V/40V Schottky rectifiers packaged in SOD123 package. Low voltage rectifications High-efficiency DC-DC conversions Switch mode power supplies Inverse polarity protections SD103AW - SD103CW SCHOTTKY BARRIER DIODE

Features

Low-Forward Voltage Drop (VF).
Better Efficiency and Cooler Operation.
Guard Ring Construction for Transient Protection.
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
For automotive.
