SDM02U30LP3 - ULTRA-SMALL SURFACE MOUNT SCHOTTKY DIODE

SDM02U30LP3 Description

SDM02U30LP3 ULTRA-SMALL SURFACE MOUNT SCHOTTKY DIODE Product Summary VRRM (V) 30 IO (mA) 100 VF max(V) 0.37 IR max (μA) 7 .
The SDM02U30LP3 is a schottky barrier diode optimized for ultra lowforward voltage drop and low reverse leakage current.

SDM02U30LP3 Features

* 0.18mm footprint
* 70% smaller than DFN1006/SOD923 Off board profile of 0.35mm
* 30% thinner than the DFN1006 Low forward voltage of 0.37V (max)
* minimises power dissipation losses Low leakage
* maximises ba

SDM02U30LP3 Applications

* Reverse Voltage and Current Protection Blocking diode Clamping protection LCD and Key Pad Backlighting Freewheeling diode. X3-DFN0603-2 www. DataSheet. net/ Top View Bottom View Ordering Information (Note 4) Part Number SDM02U30LP3-7B Notes: Case

📥 Download Datasheet

Preview of SDM02U30LP3 PDF

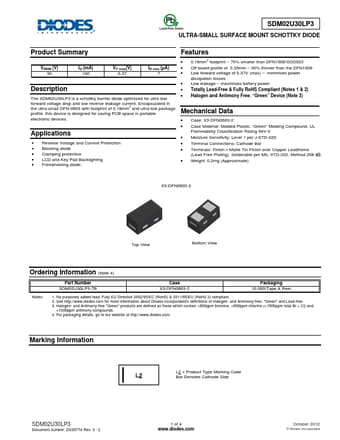

datasheet Preview Page 2 datasheet Preview Page 3
