STPR810DB, STPR805DB - 8.0A SUPER-FAST GLASS PASSIVATED RECTIFIER

Name: STPR810DB
SKU: STPR810DB-683378

Diodes

The STPR810DB by Diodes is a 8.0A SUPER-FAST GLASS PASSIVATED RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	STPR810DB, STPR805DB
Manufacturer	DIODES
File Size	89.41 KB
Description	8.0A SUPER-FAST GLASS PASSIVATED RECTIFIER
Datasheet	STPR805DB_Diodes.pdf
Note	This datasheet PDF includes multiple part numbers: STPR810DB, STPR805DB. Please refer to the document for exact specifications by model.

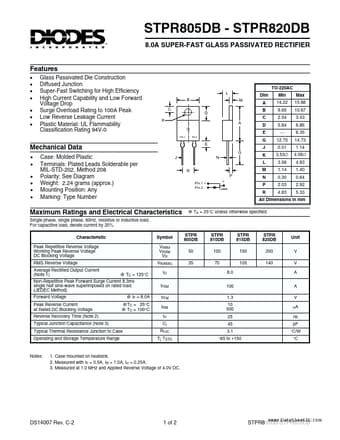

Additional preview pages of the STPR810DB datasheet.

Glass Passivated Die Construction Diffused Junction Super-Fast Switching for High Efficiency High Current Capability and Low Forward Voltage Drop Surge Overload Rating to 100A Peak Low Reverse Leakage Current Plastic Material: UL Flammability Classification Rating 94V-0 TO-220AC L B C K D A Pin 1 Pin 2 M Dim A B C D E G J Min 14.22 9.65 2.54 5.84 ¾ 12.70 0.51 3.53Æ 3.56 1.14 0.30 2.03 4.83 Max 15.88 10.67 3.43 6.86 6.35 14.73 1.14 4.09Æ 4.83 1.40 0.6.
