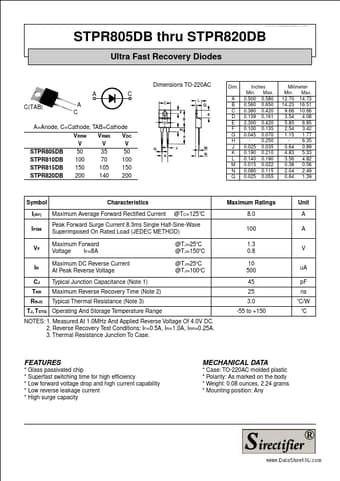

www.DataSheet4U.com STPR805DB thru STPR820DB Ultra Fast Recovery Diodes Dimensions TO-220AC A C(TAB) A C C Dim. A B C D E F G H J K L M N Q A=Anode, C=Cathode, TAB=Cathode VRRM V 50 100 150 200 VRMS V 35 70 105 140 VDC V 50 100 150 200 STPR805DB STPR810DB STPR815DB STPR820DB Inches Min. Max. 0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055 Milimeter Min. Max. 12.70 14.73 14.23 .

STPR815DB Features

* Glass passivated chip

* Superfast switching time for high efficiency

* Low forward voltage drop and high current capability

* Low reverse leakage current

* High surge capacity MECHANICAL DATA

* Case: TO-220AC molded plastic

* Polarity: As marked on the body

* Weigh
