STPR840DF, STPR805DF_Lite SUPER FAST GLASS PASSIVATED RECTIFIERS

Lite-On Technology

Description

www.DataSheet4U.com LITE-ON SEMICONDUCTOR STPR805DF thru 860DF REVERSE VOLTAGE - 50 to 600 Volts FORWARD CURRENT - 8.0 Amperes SUPER FAST GLASS PAS.

📥 Download Datasheet

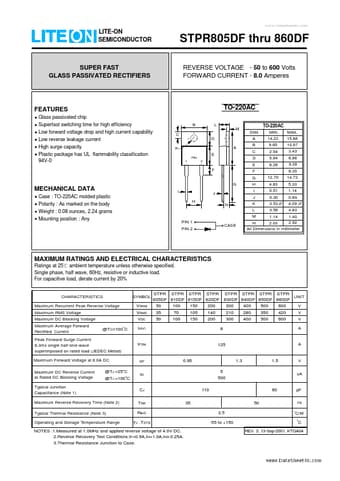

STPR840DF Datasheet Preview — This datasheet PDF includes multiple part numbers: STPR840DF, STPR805DF_Lite. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: STPR840DF, STPR805DF_Lite
Manufacturer: Lite-On Technology
File Size: 65.05 KB
Datasheet: STPR805DF_Lite-OnTechnology.pdf
Description: SUPER FAST GLASS PASSIVATED RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: STPR840DF, STPR805DF_Lite.
Please refer to the document for exact specifications by model.

Features

* Glass passivated chip Superfast switching time for high efficiency Low forward voltage drop and high current capability Low reverse leakage current High surge capacity Plastic package has UL flammability classification 94V-0 B C K PIN 1 2 TO-220AC L M D A E DIM. A B C D E F G I H J N F G H I J K TO
