STPR810DF Ultra Fast Recovery Diodes

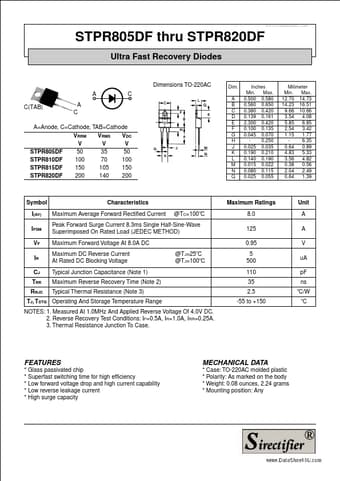

www.DataSheet4U.com STPR805DF thru STPR820DF Ultra Fast Recovery Diodes Dimensions TO-220AC A C(TAB) A C C Dim. A B C D E F G H J K L M N Q A=Anode, C=Cathode, TAB=Cathode VRRM V 50 100 150 200 VRMS V 35 70 105 140 VDC V 50 100 150 200 STPR805DF STPR810DF STPR815DF STPR820DF Inches Min. Max. 0.500 0.580 0.560 0.650 0.380 0.420 0.139 0.161 2.300 0.420 0.100 0.135 0.045 0.070 0.250 0.025 0.035 0.190 0.210 0.140 0.190 0.015 0.022 0.080 0.115 0.025 0.055 Milimeter Min. Max. 12.70 14.73 14.23 .

STPR810DF Features

* Glass passivated chip

* Superfast switching time for high efficiency

* Low forward voltage drop and high current capability

* Low reverse leakage current

* High surge capacity MECHANICAL DATA

* Case: TO-220AC molded plastic

* Polarity: As marked on the body

* Weigh
