ZTX1049A - NPN MEDIUM POWER TRANSISTOR

Datasheet Summary

Features

BVCEO > 25V.
IC = 4A High Continuous Collector Current.
ICM = 20A Peak Pulse Current.
TJ up to 200°C for High Temperature Operation.
Low Saturation Voltage < 75mV @ 1A.
PD = 1W Power dissipation.
Lead-Free Finish; RoHS compliant (Note 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
Case: E-Line (TO-92 Compatible).
C.

Datasheet Details

Part number	ZTX1049A
Manufacturer	DIODES
File Size	269.06 KB
Description	NPN MEDIUM POWER TRANSISTOR
Datasheet	ZTX1049A Datasheet
Additional preview pages of the ZTX1049A datasheet.

📁 Similar Datasheet

ZTX1047A - NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR (Zetex Semiconductors)

ZTX1048A - NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR (Zetex Semiconductors)

ZTX1051A - NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR (Zetex Semiconductors)

ZTX1053A - NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR (Zetex Semiconductors)

ZTX1055A - NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR (Zetex Semiconductors)

ZTX1056A - NPN SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR (Zetex Semiconductors)

ZTX107 - (ZTXxxx) NPN General Purpose (Zetex Semiconductors)

ZTX108 - (ZTXxxx) NPN General Purpose (Zetex Semiconductors)

ZTX109 - (ZTXxxx) NPN Low Noise (Zetex Semiconductors)

ZTX1147A - PNP SILICON PLANAR MEDIUM POWER HIGH GAIN TRANSISTOR (Zetex Semiconductors)

Full PDF Text Transcription

Click to expand full text

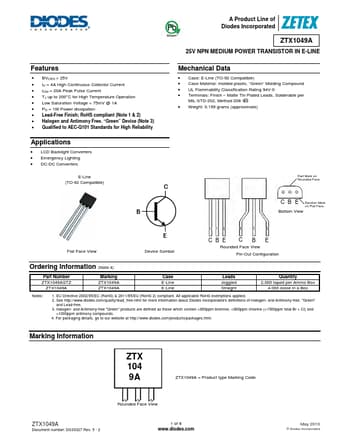

A Product Line of Diodes Incorporated Green ZTX1049A 25V NPN MEDIUM POWER TRANSISTOR IN E-LINE Features • BVCEO > 25V • IC = 4A High Continuous Collector Current • ICM = 20A Peak Pulse Current • TJ up to 200°C for High Temperature Operation • Low Saturation Voltage < 75mV @ 1A • PD = 1W Power dissipation • Lead-Free Finish; RoHS compliant (Note 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data • Case: E-Line (TO-92 Compatible) • Case Material: molded plastic, “Green” Molding Compound • UL Flammability Classification Rating 94V-0 • Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 • Weight: 0.
