ZTX1051A Datasheet, Transistor, Zetex Semiconductors

ZTX1051A Features

  • Transistor
  • BCEV=150V
  • Very Low Saturation Voltage
  • High Gain
  • Inherently Low Noise APPLICATIONS
  • Emergency Lighting
  • Low Noise Audio ZTX1051

PDF File Details

Part number:

ZTX1051A

Manufacturer:

Zetex Semiconductors

File Size:

109.60kb

Download:

📄 Datasheet

Description:

Npn silicon planar medium power high gain transistor.

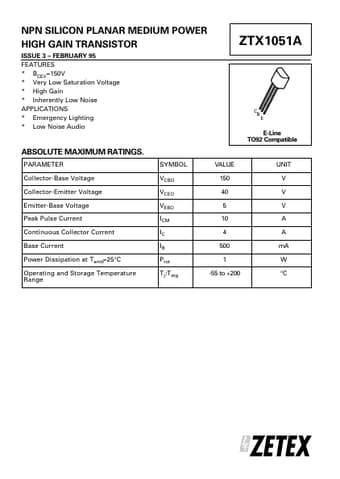

Datasheet Preview: ZTX1051A 📥 Download PDF (109.60kb)
Page 2 of ZTX1051A Page 3 of ZTX1051A

ZTX1051A Application

  • Applications
  • Emergency Lighting
  • Low Noise Audio ZTX1051A C B E E-Line TO92 Compatible ABSOLUTE MAXIMUM RATINGS. PARAMETER C
