DB300 Datasheet, Rectifiers, Diotec Semiconductor

DB300 Features

• Rectifiers PRV Ratings from 50 to 1000 Volts Surge overload rating to 60 Amps peak Reliable low cost molded epoxy construction Ideal for printed circuit board applications ACTUAL SIZE DT DB306 ME

PDF File Details

Part number:

DB300

Manufacturer:

Diotec Semiconductor

File Size:

359.65kb

Download:

📄 Datasheet

Description:

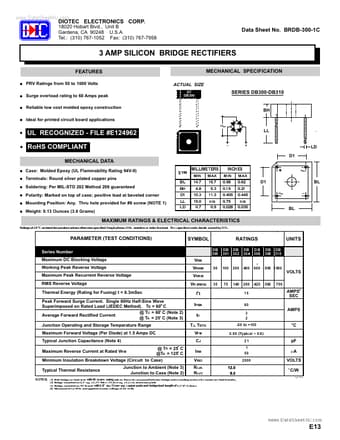

(db300 - db310) 3 amp silicon bridge rectifiers.

DB300 Application

• Applications ACTUAL SIZE DT DB306 MECHANICAL SPECIFICATION SERIES DB300-DB310 BH UL RECOGNIZED - FILE #E124962 RoHS COMPLIANT MECHANICAL DATA Ca
