SB15100 (SB1520 - SB15100) Schottky Barrier Rectifiers

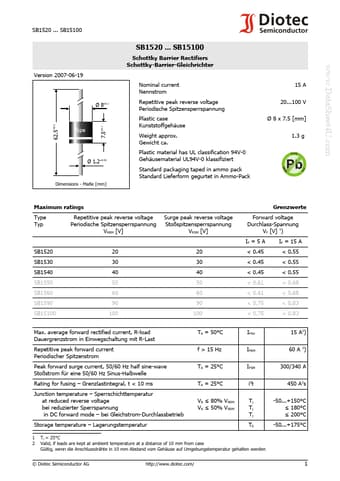

SB1520 SB15100 SB1520 SB15100 Schottky Barrier Rectifiers Schottky-Barrier-Gleichrichter Version 2007-06-19 Nominal current Nennstrom Ø8 ±0.1 www.DataSheet4U.com 15 A 20100 V Ø 8 x 7.5 [mm] 1.3 g Repetitive peak reverse voltage Periodische Spitzensperrspannung Plastic case Kunststoffgehäuse Weight approx. Gewicht ca. Plastic material has UL classification 94V-0 Gehäusematerial UL94V-0 klassifiziert Standard packaging taped in ammo pack Standard Lieferform gegurtet in Ammo-Pack ±0.5 62.5 .

SB1520_DiotecSemiconductor.pdf

SB15100 Datasheet Preview — This datasheet PDF includes multiple part numbers: SB15100, SB1520. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SB15100, SB1520

Manufacturer:

Diotec Semiconductor

File Size:

114.13 KB

Description:

(sb1520 - sb15100) schottky barrier rectifiers.

Note:

This datasheet PDF includes multiple part numbers: SB15100, SB1520.
Please refer to the document for exact specifications by model.
