SB1520S - (SB1520S - SB15100S) Schottky barrier rectifier diodes

SB1520S Description

SB 1520S SB 15100S Type Repetitive peak reverse voltage Surge peak reverse voltage Max.reverse recovery time Max.forward voltage Max.forward volta.

SB1520S Features

* Max. solder temperature: 260°C
* Plastic material has UL classification 94V-0
* Electrostatic discharge immunity test IEC 1000-4-2 (C=150 pF, R=150 Ohm): voltage class 20 kV SB 1540S SB 1545S SB 1550S SB 1560S SB 1590S SB 15100S Absolute Maximum Ratings Symbol IFAV IFRM I

SB1520S Applications

* br>
* Designed as Bypass Diodes for Solar Panels, protection application Mechanical Data
* Plastic case: 5,4 x 7,5 [mm]
* Weight approx. : 1,4 g
* Terminals: plated terminals solderable per MIL-STD-750
* Mounting position: any
* Standard packaging: 12

📥 Download Datasheet

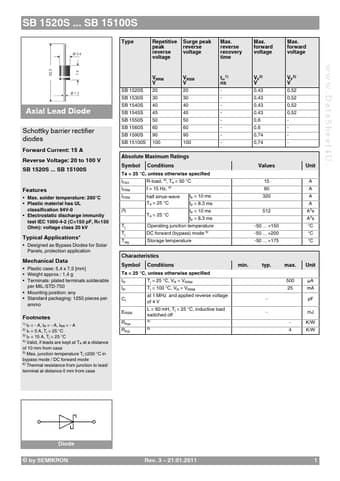

Preview of SB1520S PDF
