SB1535, SB1520 Datasheet - LRC

SB1535, SB1520, Schottky Barrier Rectifiers

SB1520 thru SB15100 Schottky Barrier Rectifiers Reverse Voltage 35 to 100V Forward Current 15A .

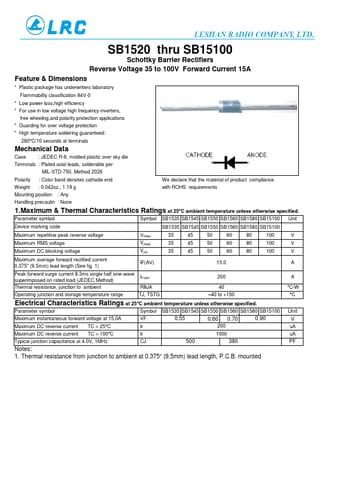

datasheet Preview Page 1 from Datasheet4u.com

SB1520-LRC.pdf

This datasheet PDF includes multiple part numbers: SB1535, SB1520. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

SB1535, SB1520

Manufacturer:

LRC

File Size:

80.53 KB

Description:

Schottky Barrier Rectifiers

Note:

This datasheet PDF includes multiple part numbers: SB1535, SB1520.
Please refer to the document for exact specifications by model.

Applications

* Guarding for over voltage protection
* High temperature soldering guaranteed: 260°C/10 seconds at terminals Mechanical Data Case : JEDEC R-6, molded plastic over sky die Terminals : Plated axial leads, solderable per MIL-STD-750, Method 2026 Polarity : Color band denotes cathode end
