SBT10100 - Schottky Barrier Rectifiers

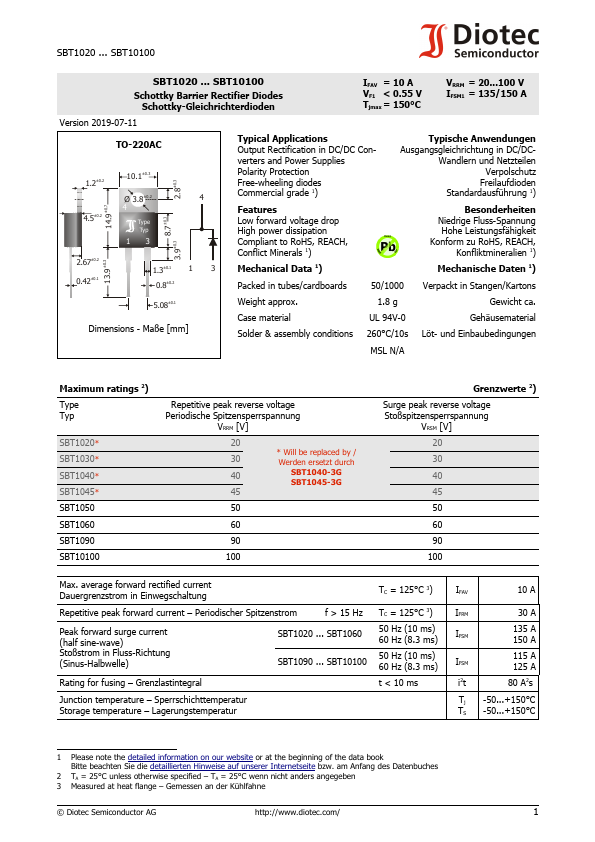

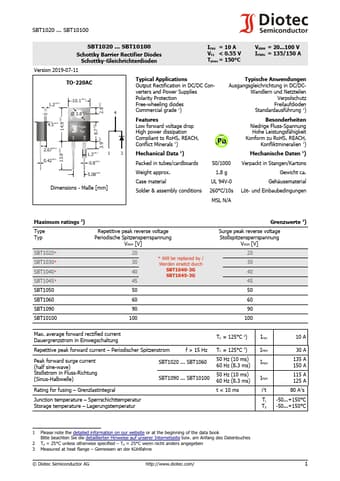

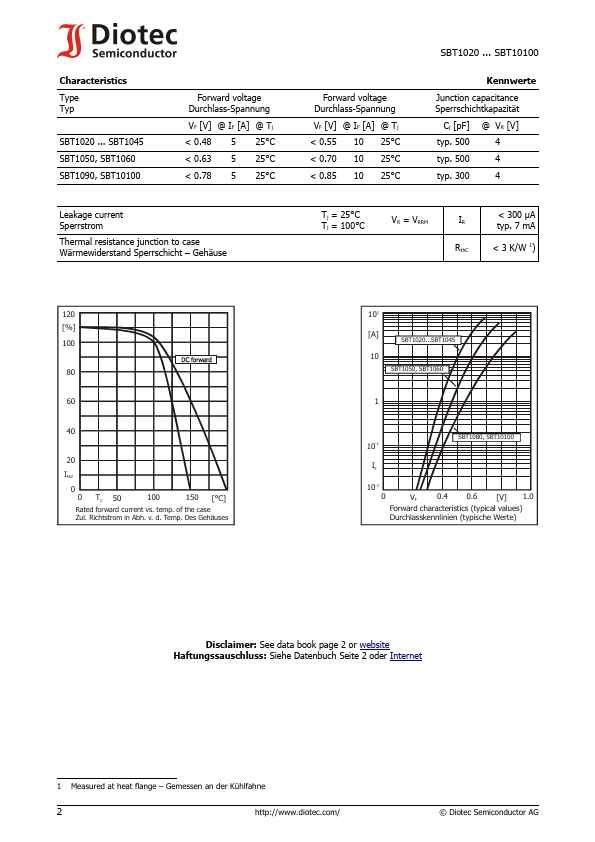

SBT1020 SBT10100 SBT1020 SBT10100 Schottky Barrier Rectifier Diodes Schottky-Gleichrichterdioden IFAV = 10 A VF1 < 0.55 V Tjmax = 150°C VRRM = 20100 V IFSM1 = 135/150 A Version 2019-07-11 TO-220AC 1.2±0.2 4.5±0.2 2.67±0.2 0.42±0.1 13.9±0.3 14.9±0.7 10.1±0.3 2.8±0.3 Ø 3.8±0.2 4 4 Type Typ 13 8.7±0.3 3.9±0.3 1.3±0.1 1 3 0.8±0.2 Typical Applications Output Rectification in DC/DC Converters and Power Supplies Polarity Protection Free-wheeling diodes Commercial grade 1) Typisch

SBT10100 Features

* Low forward voltage drop High power dissipation Compliant to RoHS, REACH, Conflict Minerals 1) WEEE RoHS Pb ELV Besonderheiten Niedrige Fluss-Spannung Hohe Leistungsfähigkeit Konform zu RoHS, REACH, Konfliktmineralien 1) Mechanical Data 1) Mechanische Daten 1) Packed in tubes/cardboards 5
