SBT10100UCT - EXTREME LOW VF SCHOTTKY BARRIER RECTIFIER

Product Overview

Pan Jit International

📥 Download Datasheet

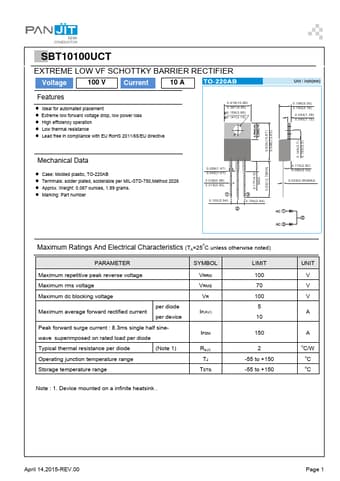

SBT10100UCT EXTREME LOW VF SCHOTTKY BARRIER RECTIFIER by Pan Jit International - Datasheet Preview — Datasheet preview – SBT10100UCT

Datasheet Details

Part number	SBT10100UCT
Manufacturer	Pan Jit International
File Size	221.22 KB
Description	EXTREME LOW VF SCHOTTKY BARRIER RECTIFIER
Datasheet	SBT10100UCT Datasheet
Additional preview pages of the SBT10100UCT datasheet.

Product details

Features

Ideal for automated placement.
Extreme low forward voltage drop, low power loss.
High efficiency operation.
Low thermal resistance.
Lead free in compliance with EU RoHS 2011/65/EU directive 0.419(10.66) 0.387(9.85) 0.156(3.95) 0.147(3.75) Mechanical Data.
Case: Molded plastic, TO-220AB.
Terminals: solder plated, solderable per MIL-STD-750,Method 2026.
Approx. Weight: 0.067 ounces, 1.89 grams.
Marking: Part number 0.058(1.47) 0.042(1.07) 0.038(0.9.
