SBT103AT - Small Signal Schottky Barrier Diodes

Product Overview

Part number	SBT103AT
Manufacturer	Silicon-Based Technology
File Size	194.97 KB
Description	Small Signal Schottky Barrier Diodes
Datasheet	SBT103AT Datasheet
Note	This datasheet PDF includes multiple part numbers: SBT103AT, SBT103AT_Silicon. Please refer to the document for exact specifications by model.

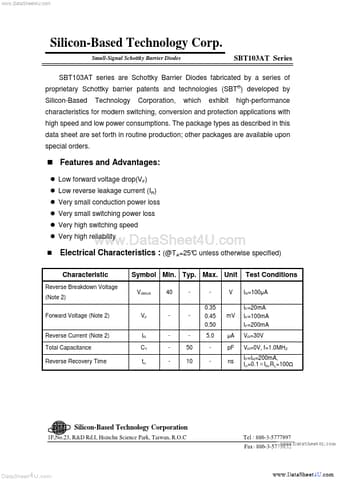

Additional preview pages of the SBT103AT datasheet.

and Advantages: Low forward voltage drop(VF) Low reverse leakage current (IR) Very small conduction power loss Very small switching power loss Very high switching speed Very high reliability www. DataSheet4U. com Symbol Min. Typ. Max. Unit V(BR)R 40 0.35 V Electrical Characteristics : (@TA=25°C unless otherwise specified) Characteristic Reverse Breakdown Voltage (Note 2) Forward Voltage (Note 2) Test Conditions IR=100µA IF=20mA VF IR CT trr - - 0.45 0.50 5.0 - mV IF=100mA IF=200mA VR=30V.
