DBT134-600 - Triacs

Datasheet Summary

Description

This device is sensitive gate triac suitable for direct coupling to TTL, HTL, CMOS and application such as various logic functions, low power AC switching applications, such as fan speed, small light controllers and home appliance equipment.

Features

  • Repetitive Peak Off-State Voltage : 600V R. M. S On-State Current ( IT(RMS)= 4 A ) High Commutation dv/dt Sensitive Gate Triggering 4 Mode 2.T2 BVDRM = 600V IT(RMS) = 4 A 3.Gate 1.T1 ITSM = 25 A TO-126 General.

📥 Download Datasheet

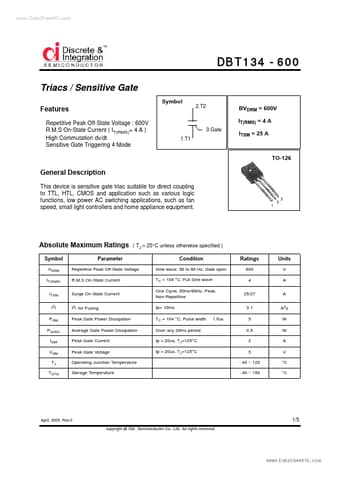

Datasheet preview – DBT134-600

Datasheet Details

Part number DBT134-600
Manufacturer DnI
File Size 560.42 KB
Description Triacs
Datasheet download datasheet DBT134-600 Datasheet
Additional preview pages of the DBT134-600 datasheet.

📁 Similar Datasheet

  • DBTC-10-4-75 - Surface Mount Directional Couplers (Mini-Circuits)
  • DBTC-12-4 - Surface Mount Directional Couplers 50 5 to 1000 MHz (Mini-Circuits)
  • DBTC-12-4L - Surface Mount Directional Couplers 50 5 to 1000 MHz (Mini-Circuits)
  • DBTC-13-5-75 - Surface Mount Directional Couplers (Mini-Circuits)
  • DBTC-16-5-75+ - Directional Couplers (Mini-Circuits)
  • DBTC-16-5-75L+ - Directional Couplers (Mini-Circuits)
  • DBTC-17-5 - Surface Mount Directional Couplers 50 50 to 2000 MHz (Mini-Circuits)
  • DBTC-17-5L - Surface Mount Directional Couplers 50 50 to 2000 MHz (Mini-Circuits)
  • DBTC-18-4-75 - Surface Mount Directional Couplers (Mini-Circuits)
  • DBTC-20-4-75 - Surface Mount Directional Couplers (Mini-Circuits)
Other Datasheets by DnI

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com DBT134 - 600 Triacs / Sensitive Gate Symbol Features Repetitive Peak Off-State Voltage : 600V R.M.S On-State Current ( IT(RMS)= 4 A ) High Commutation dv/dt Sensitive Gate Triggering 4 Mode 2.T2 BVDRM = 600V IT(RMS) = 4 A 3.Gate 1.T1 ITSM = 25 A TO-126 General Description This device is sensitive gate triac suitable for direct coupling to TTL, HTL, CMOS and application such as various logic functions, low power AC switching applications, such as fan speed, small light controllers and home appliance equipment.
