DBT136-800 Datasheet, Triacs, DnI

DBT136-800 Features

  • Triacs Repetitive Peak Off-State Voltage : 800V R.M.S On-State Current ( IT(RMS)= 4 A ) High Commutation dv/dt Sensitive Gate Triggering 4 Mode Non-isolated Type 2.T2 BVDRM = 800V IT(RMS) =

PDF File Details

Part number:

DBT136-800

Manufacturer:

DnI

File Size:

540.67kb

Download:

📄 Datasheet

Description:

Triacs. This device is sensitive gate triac suitable for direct coupling to TTL, HTL, CMOS and application such as various logic functions, l

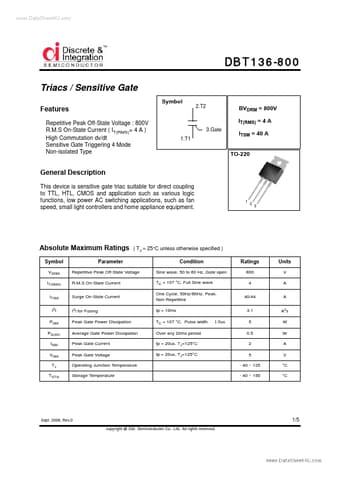

Datasheet Preview: DBT136-800 📥 Download PDF (540.67kb)
Page 2 of DBT136-800 Page 3 of DBT136-800

DBT136-800 Application

  • Applications such as fan speed, small light controllers and home appliance equipment. 1 2 3 Absolute Maximum Ratings Symbol VDRM IT(RMS) ITSM I2
