DBT137-600 Datasheet, Triacs, DnI

DBT137-600 Features

  • Triacs Repetitive Peak Off-State Voltage : 600V R.M.S On-State Current ( IT(RMS)= 8 A ) High Commutation dv/dt Sensitive Gate Triggering 3 Mode ( IGT = 10mA) Non-isolated Type 3.Gate 1.T1 BVD

PDF File Details

Part number:

DBT137-600

Manufacturer:

DnI

File Size:

588.36kb

Download:

📄 Datasheet

Description:

Triacs. This device is sensitive gate triggering triac suitable for direct coupling to TTL, HTL, CMOS and application such as various logic f

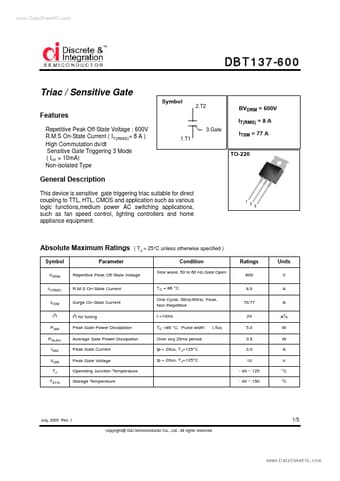

Datasheet Preview: DBT137-600 📥 Download PDF (588.36kb)
Page 2 of DBT137-600 Page 3 of DBT137-600

DBT137-600 Application

  • Applications such as fan speed control, lighting controllers and home appliance equipment. 1 2 3 Absolute Maximum Ratings Symbol VDRM IT(RMS) IT
