DBT151-600

Standard Gate SCR

DBT151-600 Features

* Repetitive Peak Off-State Voltage : 600V R.M.S On-State Current ( IT(RMS)= 12 A ) Low On-State Voltage (1.5V(Typ.)@ ITM) Non-isolated Type 1.Cathode Symbol 2. Anode BVDRM = 600V IT(RMS) = 12 A 3.Gate ITSM = 120A TO-220 General Description Standard gate triggering thyristor is suitable for the

DBT151-600 General Description

Standard gate triggering thyristor is suitable for the application where requiring high bidirectional blocking voltage capability and also suitable for over voltage protection ,motor control circuit in power tool, inrush current limit circuit and heating control system. 1 2 3 Absolute Maximum Ratin.

DBT151-600 Datasheet (593.45 KB)

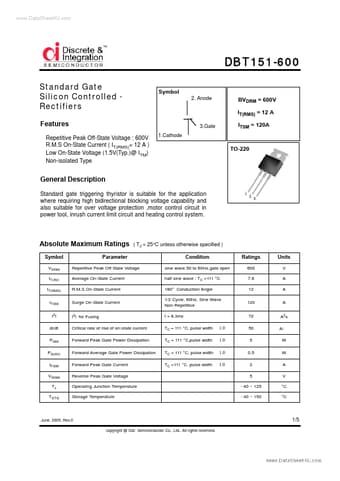

Preview of DBT151-600 PDF

Datasheet Details

Part number:

DBT151-600

Manufacturer:

DnI

File Size:

593.45 KB

Description:

Standard gate scr.
