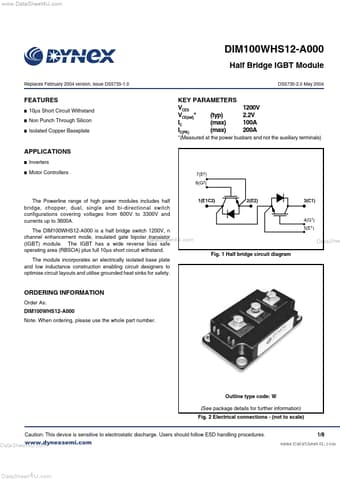

DIM100WHS12-A000 Datasheet, Module, Dynex Semiconductor

DIM100WHS12-A000 Features

• Module I I I 10µs Short Circuit Withstand Non Punch Through Silicon Isolated Copper Baseplate KEY PARAMETERS VCES (typ) VCE(sat)
• (max) IC (max) IC(PK) 1200V 2.2V 100A 200A

PDF File Details

Part number:

DIM100WHS12-A000

Manufacturer:

Dynex Semiconductor

File Size:

322.16kb

Download:

📄 Datasheet

Description:

Igbt power module.

DIM100WHS12-A000 Application

• Applications I I Inverters Motor Controllers 7(E2) 6(G2) The Powerline range of high power modules includes half bridge, chopper, dual, single and
