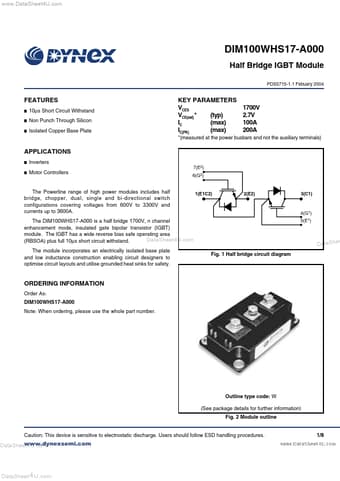

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com DIM100WHS17-A000 DIM100WHS17-A000 Half Bridge IGBT Module PDS5715-1.1 Febuary 2004 .

📥 Download Datasheet

Preview of DIM100WHS17-A000 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* I I I 10µs Short Circuit Withstand Non Punch Through Silicon Isolated Copper Base Plate KEY PARAMETERS VCES (typ) VCE(sat)
* (max) IC (max) IC(PK) 1700V 2.7V 100A 200A

Applications

* I I Inverters 7(E2) Motor Controllers 6(G2) The Powerline range of high power modules includes half bridge, chopper, dual, single and bi-directional switch configurations covering voltages from 600V to 3300V and currents up to 3600A. The DIM100WHS17-A000 is a half bridge 1700V, n channel enhance
