DIM100WHS17-E000

IGBT Power Module

Dynex Semiconductor

DIM100WHS17-E000 Features

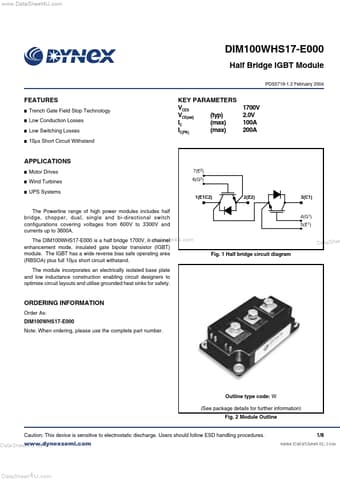

* I I I I Trench Gate Field Stop Technology Low Conduction Losses Low Switching Losses 10µs Short Circuit Withstand KEY PARAMETERS VCES (typ) VCE(sat) (max) IC (max) IC(PK) 1700V 2.0V 100A 200A APPLICATIONS I I I Motor Drives Wind Turbines UPS Systems 7(E2) 6(G2) 1(E1C2) 2(E2) 3(C1) The Powe

DIM100WHS17-E000 Datasheet (341.22 KB)

DIM100WHS17-E000 Datasheet Preview — Preview of DIM100WHS17-E000 PDF

Datasheet Details

Part number:

DIM100WHS17-E000

Manufacturer:

Dynex Semiconductor

File Size:

341.22 KB

Description:

Igbt power module.
