SV15xx Fast Recovery Diode

📥 Download Datasheet  Datasheet Preview Page 1

Description

SV15..F SV15..F Fast Recovery Diode Replaces March 1998 version, DS4209-2.2 DS4209-3.0 January 2000 APPLICATIONS s Induction Heating s A.C.Motor Dr.

📥 Download Datasheet

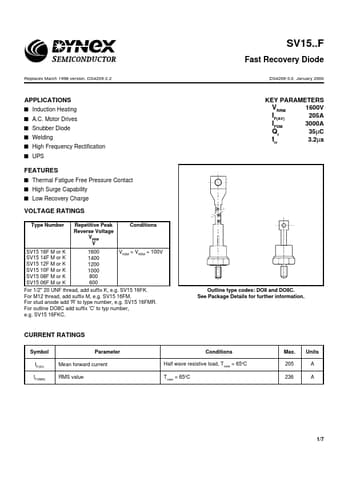

Preview of SV15xx PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SV15xx
Manufacturer
Dynex Semiconductor
File Size
64.26 KB
Datasheet
SV15xx_DynexSemiconductor.pdf
Description
Fast Recovery Diode

Features

* s Thermal Fatigue Free Pressure Contact s High Surge Capability s Low Recovery Charge VOLTAGE RATINGS Type Number Repetitive Peak Reverse Voltage VRRM V Conditions SV15 16F M or K VRSM = VRRM + 100V 1600 SV15 14F M or K 1400 SV15 12F M or K 1200 SV15 10F M or K 1000 SV15 08F M or K 800 SV15 06F M
