DF45106 Fast Recovery Diode

Dynex

DF45106 Description

DF451 DF451 Fast Recovery Diode Replaces March 1999 version, DS4142-4.0 DS4143-5.0 January 2000 .

DF45106 Applications

* s s s s s s KEY PARAMETERS VRRM 1600V IF(AV) 295A IFSM 3500A Qr 25µC trr 1.22µs Induction Heating A. C. Motor Drives Inverters And Choppers Welding High Frequency Rectification UPS Voltage Ratings Type Number Repetitive Peak Reverse Voltage VRRM V 1600 1400 1200 1000 800 600 Conditions Outline typ

📥 Download Datasheet

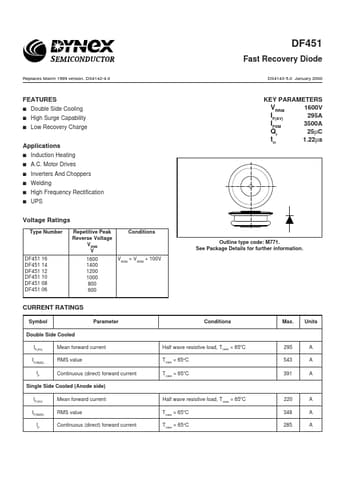

DF45106 Datasheet Preview — Preview of DF45106 PDF

Datasheet Details

Part number: DF45106
Manufacturer: Dynex
File Size: 56.91 KB
Datasheet: DF45106_DynexSemiconductor.pdf
Description: Fast Recovery Diode
