DFM300LXS12-A000

Fast Recovery Diode Module Preliminary Information

Dynex

DFM300LXS12-A000 Features

* s Low Reverse Recovery Charge s High Switching Speed s Low Forward Voltage Drop s Isolated Base KEY PARAMETERS VRRM (typ) VF (max) IF (max) IFM 1200V 1.9V 300A 600A APPLICATIONS s Chopper Diodes s Boost and Buck Converters s Free-wheel Circuits s Snubber Circuits s Resonant Converters s Multi-lev

DFM300LXS12-A000 Datasheet (92.62 KB)

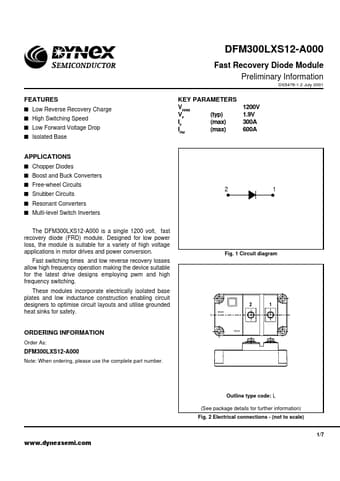

DFM300LXS12-A000 Datasheet Preview — Preview of DFM300LXS12-A000 PDF

Datasheet Details

Part number:

DFM300LXS12-A000

Manufacturer:

Dynex

File Size:

92.62 KB

Description:

Fast recovery diode module preliminary information.
