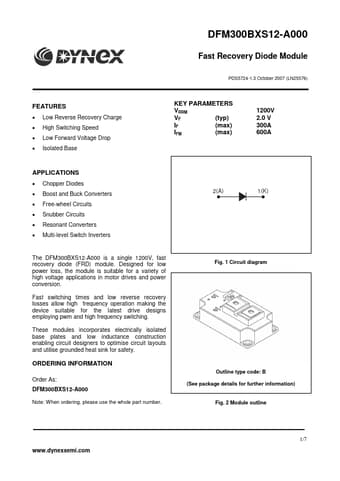

DFM300BXS12-A000 Datasheet, Module, DYNEX

✔ DFM300BXS12-A000 Features

Low Reverse Recovery Charge High Switching Speed Low Forward Voltage Drop Isolated Base KEY PARAMETERS VRRM VF IF IFM (typ) (max) (max) 1200V 2.0 V 300A 600A APPLICA

✔ DFM300BXS12-A000 Application

Chopper Diodes Boost and Buck Converters Free-wheel Circuits Snubber Circuits Resonant Converters Multi-leve

PDF File Details

DYNEX manufacturer logo

Part number:

DFM300BXS12-A000

Manufacturer:

DYNEX

File Size:

156.22kb

Download:

📄 Datasheet

Description:

Fast recovery diode module.

📥 Download PDF (156.22kb)
