DFM1200EXM18-A000

Fast Recovery Diode Module

Dynex

DFM1200EXM18-A000 Features

* Low Reverse Recovery Charge

* High Switching Speed

* Low Forward Volt Drop

* Isolated AlSiC Base with AlN Substrates

* Triple Diodes can be paralleled for 3600A rating

* Lead Free Construction KEY PARAMETERS VRRM VF IF IFM (typ) (max) (max) 1800V 2.0V 1200A 2400A 9(K1)

DFM1200EXM18-A000 Datasheet (232.92 KB)

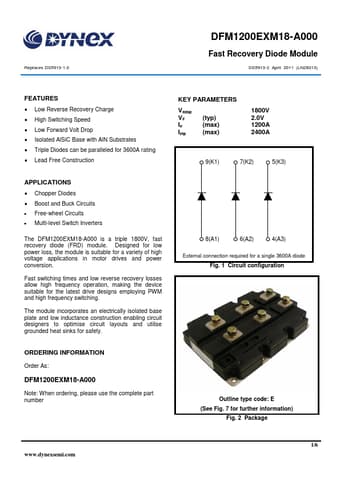

DFM1200EXM18-A000 Datasheet Preview — Preview of DFM1200EXM18-A000 PDF

Datasheet Details

Part number:

DFM1200EXM18-A000

Manufacturer:

Dynex

File Size:

232.92 KB

Description:

Fast recovery diode module.
