DFM1200EXS12-A000, Fast Recovery Diode Module

Replaces DS5851-1.2 DFM1200EXS12-A000 Fast Recovery Diode Module DS5851-2 August 2011 (LN28651) .

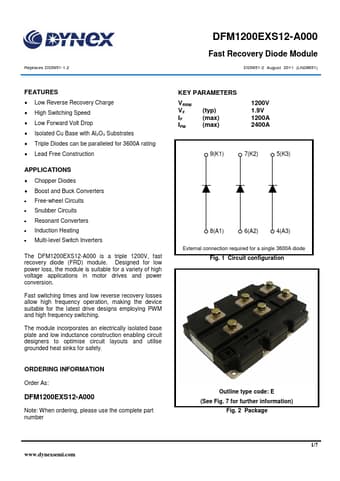

datasheet Preview Page 1 from Datasheet4u.com

DFM1200EXS12-A000-Dynex.pdf

DFM1200EXS12-A000 Datasheet Preview — Preview of DFM1200EXS12-A000 PDF

Datasheet Details

Part number:

DFM1200EXS12-A000

Manufacturer:

Dynex

File Size:

237.64 KB

Description:

Fast Recovery Diode Module

Features

* Low Reverse Recovery Charge
* High Switching Speed
* Low Forward Volt Drop
* Isolated Cu Base with Al2O3 Substrates
* Triple Diodes can be paralleled for 3600A rating

Applications

* Chopper Diodes
* Boost and Buck Converters
* Free-wheel Circuits
* Snubber Circuits
* Resonant Converters
* Induction Heating
* Multi-level Switch Inverters The DFM1200EXS12-A000 is a triple 1200V, fast recovery diode (FRD) module. Designed for low power loss, the modul
