DFM1200FXM12-A000

Fast Recovery Diode Module

DFM1200FXM12-A000 Features

* Low Reverse Recovery Charge

* High Switching Speed

* Low Forward Volt Drop

* Isolated AlSiC Base with AlN Substrates

* Dual Diodes can be paralleled for 2400A Rating

* Lead Free Construction KEY PARAMETERS VRRM VF IF IFM (typ) (max) (max) 1200V 1.9V 1200A 2400A 1(K) 2

DFM1200FXM12-A000 Datasheet (282.48 KB)

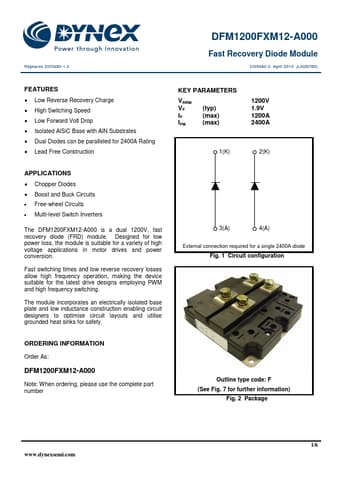

Preview of DFM1200FXM12-A000 PDF

Datasheet Details

Part number:

DFM1200FXM12-A000

Manufacturer:

Dynex

File Size:

282.48 KB

Description:

Fast recovery diode module.
