DGT409BCA6565 Datasheet - Dynex

DGT409BCA6565, Reverse Blocking Gate Turn-off Thyristor

DGT409BCA DGT409BCA Reverse Blocking Gate Turn-off Thyristor Replaces January 2000 version, DS4414-4.0 DS4414-4.1 February 2002 APPLICATIONS The DGT.

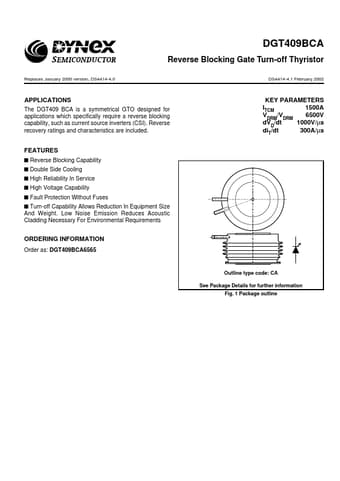

datasheet Preview Page 1 from Datasheet4u.com

DGT409BCA6565_DynexSemiconductor.pdf

DGT409BCA6565 Datasheet Preview — Preview of DGT409BCA6565 PDF

Datasheet Details

Part number:

DGT409BCA6565

Manufacturer:

Dynex

File Size:

61.98 KB

Description:

Reverse Blocking Gate Turn-off Thyristor

Features

* s Reverse Blocking Capability s Double Side Cooling s High Reliability In Service s High Voltage Capability s Fault Protection Without Fuses s Turn-off Capability Allows Reduction In Equipment Size And Weight. Low Noise Emission Reduces Acoustic Cladding Necessary For Environmental Requirements ORD

Applications

* The DGT409 BCA is a symmetrical GTO designed for applications which specifically require a reverse blocking capability, such as current source inverters (CSI). Reverse recovery ratings and characteristics are included. KEY PARAMETERS 1500A ITCM VDRM/VDRM 6500V dVD/dt 1000V/µs diT/dt 300A/µs FEATUR
