DIM800FSS17-A000 Datasheet, Module, Dynex

✔ DIM800FSS17-A000 Features

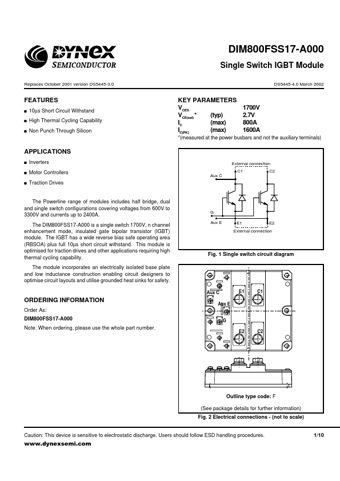

s s s 10µs Short Circuit Withstand High Thermal Cycling Capability Non Punch Through Silicon KEY PARAMETERS VCES (typ) VCE(sat)
(max) IC (max) IC(PK) 1700V 2.7V 800A

✔ DIM800FSS17-A000 Application

s s s Inverters Motor Controllers Traction Drives Aux C External connection C1 C2 The Powerline range of

PDF File Details

Dynex manufacturer logo

Part number:

DIM800FSS17-A000

Manufacturer:

Dynex

File Size:

143.13kb

Download:

📄 Datasheet

Description:

Single switch igbt module.

📥 Download PDF (143.13kb)
