DIM800FSM17-A000 Single Switch IGBT Module Preliminary Information

Dynex

Description

DIM800FSM17-A000 www.DataSheet4U.com DIM800FSM17-A000 Single Switch IGBT Module Preliminary Information Replaces May 2001, version DS5461-1.0 DS5461-.

📥 Download Datasheet

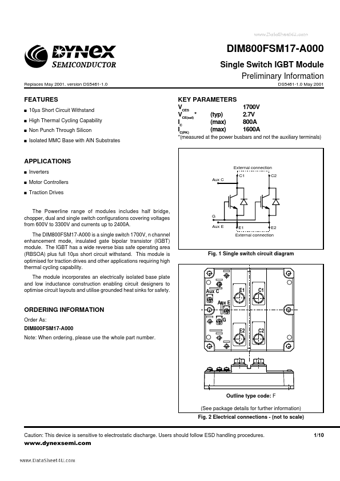

DIM800FSM17-A000 Datasheet Preview — Preview of DIM800FSM17-A000 PDF

Datasheet Specifications

Part number: DIM800FSM17-A000
Manufacturer: Dynex
File Size: 172.72 KB
Datasheet: DIM800FSM17-A000_DynexSemiconductor.pdf
Description: Single Switch IGBT Module Preliminary Information

Features

* s s s s 10µs Short Circuit Withstand High Thermal Cycling Capability Non Punch Through Silicon Isolated MMC Base with AlN Substrates KEY PARAMETERS VCES (typ) VCE(sat)
* (max) IC (max) IC(PK) 1700V 2.7V 800A 1600A
* (measured at the power busbars and not the auxiliary terminals) APPLICAT

Applications

* External connection s s s Inverters Motor Controllers Traction Drives Aux C C1 C2 The Powerline range of modules includes half bridge, chopper, dual and single switch configurations covering voltages from 600V to 3300V and currents up to 2400A. The DIM800FSM17-A000 is a single switch 1700V, n ch
