DK24 Fast Switching Thyristor

DK24 Description

DK24..FC DK24..FC Fast Switching Thyristor Replaces January 2000 version, DS4268-3.0 DS4268-4.0 July 2001 .

DK24 Applications

* s High Power Inverters And Choppers s UPS s AC Motor Drives s Induction Heating s Cycloconverters VOLTAGE RATINGS Type Number Repetitive Peak Voltages VDRM VRRM V 2000 1800 1600 1400 Conditions DK24 20FC K or M DK24 18FC K or M DK24 16FC K or M DK24 14FC K or M VRSM = VRRM + 100V IDRM = IRRM = 25

📥 Download Datasheet

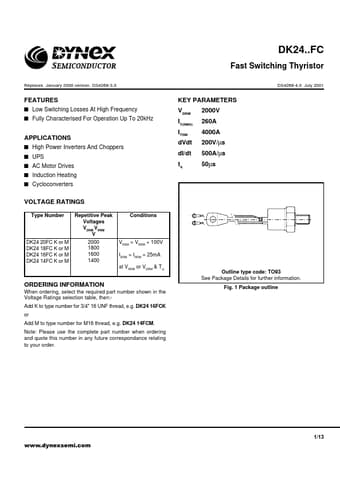

Preview of DK24 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DK24
Manufacturer
Dynex
File Size
304.38 KB
Datasheet
DK24_DynexSemiconductor.pdf
Description
Fast Switching Thyristor
