DK2053 - HIGH PERFORMANCE FRACTIONAL-N SYNTHESIZER

Product Overview

RF Micro Devices

📥 Download Datasheet

DK2053 HIGH PERFORMANCE FRACTIONAL-N SYNTHESIZER by RF Micro Devices - Datasheet Preview — Datasheet preview – DK2053

Datasheet Details

Part number	DK2053
Manufacturer	RF Micro Devices
File Size	1.18 MB
Description	HIGH PERFORMANCE FRACTIONAL-N SYNTHESIZER
Datasheet	DK2053 Datasheet
Additional preview pages of the DK2053 datasheet.

Product details

Description

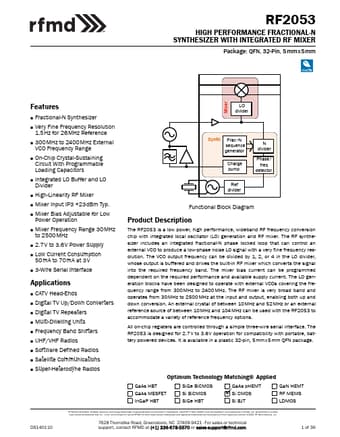

The RF2053 is a low power, high performance, wideband RF frequency conversion chip with integrated local oscillator (LO) generation and RF mixer.

Features

Fractional-N Synthesizer.
Very Fine Frequency Resolution 1.5Hz for 26MHz Reference.
300MHz to 2400MHz External VCO Frequency Range.
On-Chip Crystal-Sustaining Circuit With Programmable Loading Capacitors.
Integrated LO Buffer and LO Divider.
High-Linearity RF Mixer.
Mixer Input IP3 +23dBm Typ.
Mixer Bias Adjustable for Low Power Operation.
Mixer Frequency Range 30MHz to 2500MHz.
2.7V to 3.6V Power Supply.
Low Current Consumption 50mA to 70.
