DK2051 - HIGH PERFORMANCE WIDEBAND RF PLL/VCO

Product Overview

RF Micro Devices

Datasheet Details

Part number	DK2051
Manufacturer	RF Micro Devices
File Size	1.03 MB
Description	HIGH PERFORMANCE WIDEBAND RF PLL/VCO
Datasheet	DK2051 Datasheet

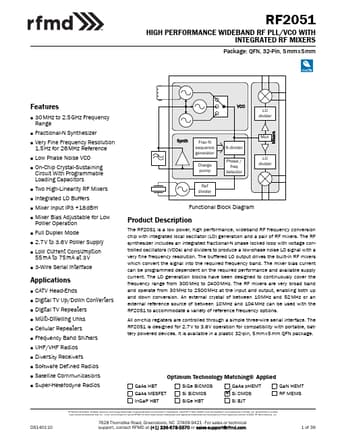

Additional preview pages of the DK2051 datasheet.

Product details

Description

The RF2051 is a low power, high performance, wideband RF frequency conversion chip with integrated local oscillator (LO) generation and a pair of RF mixers.

Features

30MHz to 2.5GHz Frequency Range.
Fractional-N Synthesizer.
Very Fine Frequency Resolution 1.5Hz for 26MHz Reference.
Low Phase Noise VCO.
On-Chip Crystal-Sustaining Circuit With Programmable Loading Capacitors.
Two High-Linearity RF Mixers.
Integrated LO Buffers.
Mixer Input IP3 +18dBm.
Mixer Bias Adjustable for Low Power Operation.
Full Duplex Mode.
2.7V to 3.6V Power Supply.
Low Current Consumption 55mA to 75mA at 3V.
3-Wire Ser.
